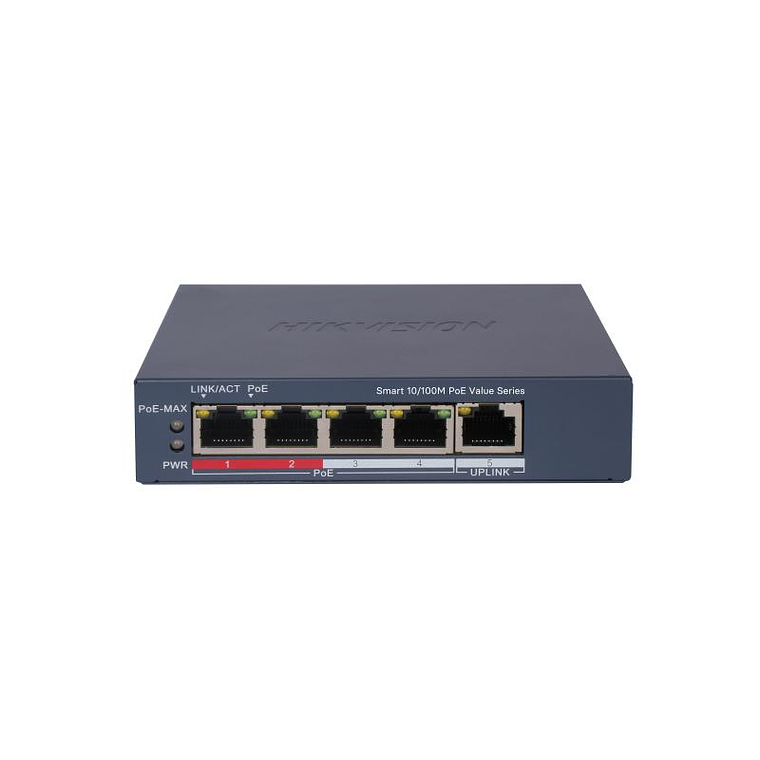

El Switch Hikvision Fast Ethernet 4x PoE+, 1x Uplink DS-3E1105P-EI es un dispositivo de red que cuenta con una anchura de 105 mm y está diseñado para ofrecer conectividad a múltiples dispositivos. Este switch dispone de cuatro puertos Power over Ethernet (PoE+) que permiten la transmisión de datos y energía eléctrica simultáneamente, lo cual resulta muy útil en entornos donde se requiere alimentar cámaras IP o teléfonos VoIP.
4 Port Fast Ethernet Smart POE Switch
- 4 × 10/100 Mbps PoE port,1 × 10/100 Mbps RJ45 port
- Total PoE Power Budget 45W
- Support 802.1Q VLAN
- Support PoE watchdog to detect and restart the cameras that do not respond
- Support STP/RSTP Loop prevention
- Support cable detection to locate failure
- Up to 300 m Long Range PoE Transmission
- 6 KV Surge Protection
- General
- CarcasaMetal material, fan-free design
- Peso neto0.26 kg (0.573 lb)
- Peso bruto0.75 kg (1.65 lb)
- Dimensiones (W x H x D)121.1 mm × 27.6 mm × 83.1 mm (4.77'' × 1.09'' × 3.27'')
- Temperatura de funcionamiento0 °C to 40 °C (32 °F to 104 °F)
- Temperatura de almacenamiento-40 °C to 85 °C (-40 °F to 185 °F)
- Condiciones de humedad5% to 95% (no condensation)
- Humedad relativa5% to 95% (no condensation)
- Fuente de alimentación54VDC, 0.92A
- Modo de instalaciónDesk-Mounted,Wall-Mounted
- Max. El consumo de energía50 W
- Consumo de energía en inactivo5 W
- Surge Protection6 KV
- Parámetros de red
- Puertos4 × 10/100 Mbps PoE port,1 × 10/100 Mbps RJ45 port
- Tabla de direcciones MAC2 K
- Capacidad de conmutación1.2 Gbps
- Tasa de reenvío de paquetes0.89 Mpps
- Caché interna768 Kbits
- Fuente de alimentación PoE
- PoE StandardIEEE 802.3af,IEEE 802.3at
- Pin de alimentación PoE8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
- Puerto PoEPoE: Ports 1 to 4
- Max. Puerto de alimentación30 W
- PoE Power Budget45 W
- Función de software
- Port Isolation
Ports 1 to 4: port isolation mode to improve network security
Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
- PoE WatchdogPorts 1 to 4: auto detect and restart the cameras that do not respond.
- Link Aggregation
Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.
Support static link aggregation.
Support 1 aggregation groups.
- Loop Prevention
Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.
Support 802.1D STP.
Suppport 802.1w RSTP.
- VLAN
VLAN is used for network scale planning and network health improvement.
Support 802.1Q.
Configurable VLAN ID from 1-4094.
Support Trunk, Access port mode.
Support Max. 32 VLAN.
- Largo alcance
Ports 1 to 4: up to 300 m.
Long range performance may vary depend on camera model or cable condition.
- HPP
Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
1. Display the port rate.
2. Display the port bandwidth utilization rate.
3. Display the PoE power usage.
4. Display topology information.
5. Display the alarm status.
6. Restart ports and devices.
7. Enable port long-rage mode.
8. Remotely upgrade the device.
- System Maintenance Support remote management via Hik-Partner Pro.
- VIP Port Ports 1 to 2: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.
- Certificaciones
- EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
- Seguridad CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- Química CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
