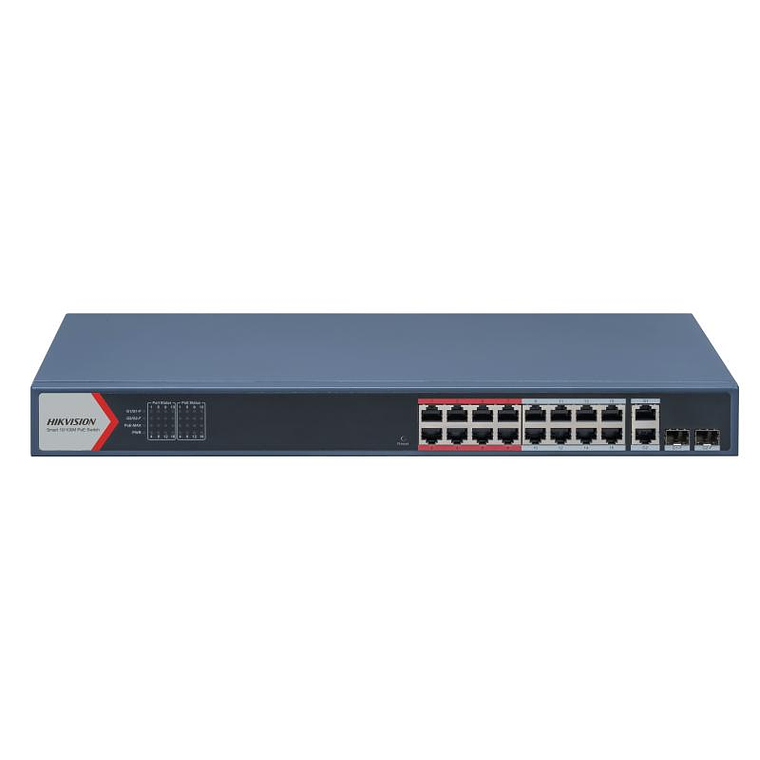

Presentamos el conmutador gestionado Hikvision DS-3E1318P-EI, una solución ideal para redes que requieren alta eficiencia y potencia. Este dispositivo cuenta con 16 puertos 10/100 PoE+, así como 2 puertos combo Gigabit, permitiendo la conexión de múltiples dispositivos en un entorno profesional. Su capacidad PoE+ de 230 W proporciona la energía necesaria para cámaras de seguridad y otros equipos, simplificando la instalación y reducción de cables.
Destaca por su diseño de sobremesa que facilita su integración en cualquier espacio. Los conmutadores de Hikvision son reconocidos por su fiabilidad y rendimiento, asegurando una experiencia de red estable y de alta velocidad.
Con características de gestión avanzada, el DS-3E1318P-EI se distingue por su facilidad de uso y configuración, convirtiéndolo en la opción preferida para empresas que buscan optimizar su infraestructura de red. Ideal para centros de monitoreo, oficinas y edificios comerciales, este conmutador es la herramienta perfecta para potenciar su conectividad.
Mejore su red con el Hikvision DS-3E1318P-EI y experimente un rendimiento superior y gestión eficiente en su infraestructura tecnológica.
- Carcasa Metal
- Peso neto 2.59 kg (5.71 lb)
- Peso bruto 3.68 kg (8.11 lb)
- Dimensiones (W x H x D) 440.00 mm × 44.00 mm × 220.80 mm (17.32'' × 1.73'' × 8.69'')
- Temperatura de funcionamiento 0 °C to 45 °C (0 °F to 113 °F)
- Temperatura de almacenamiento -40 °C to 85 °C (-40 °F to 185 °F)
- Condiciones de humedad 5% to 95% (no condensation)
- Humedad relativa 5% to 95% (no condensation)
- Fuente de alimentación 100-240 VAC, 50/60 Hz, Max. 4 A
- Modo de instalación Rack (equipped with mounting ears)
- Max. El consumo de energía 250 W
- Consumo de energía en inactivo 20 W
- Surge Protection 6 kV
- Parámetros de red
- Puertos 16 × 10/100 Mbps PoE port,2 × Gigabit combo
- Tabla de direcciones MAC 16 K
- Capacidad de conmutación Whole-Device Performance: 9.2 GbpsPort Performance: 7.2 Gbps
- Tasa de reenvío de paquetes Whole-Device Performance: 6.84 MppsPort Performance: 5.36 Mpps
- Caché interna 4 Mbits
- Fuente de alimentación PoE
- PoE Standard IEEE 802.3af,IEEE 802.3at
- Pin de alimentación PoE8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
- Puerto PoE PoE: Ports 1 to 16
- Max. Puerto de alimentación 30 W
- PoE Power Budget 230 W
- Función de software
- Largo alcance Ports 1 to 16: up to 300 m.Long range performance may vary depend on camera model or cable condition.
- VIP Port Ports 1 to 8: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.
- Port Isolation Ports 1 to 16: port isolation mode to improve network securityPorts in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
- PoE Watchdog Ports 1 to 16: auto detect and restart the cameras that do not respond.
- Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.Support static link aggregation.Support 1 aggregation groups.
- Loop Prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.Support 802.1D STP.Suppport 802.1w RSTP.
- VLAN is used for network scale planning and network health improvement.Support 802.1Q.Configurable VLAN ID from 1-4094.Support Trunk, Access port mode.Support Max. 4094 VLAN.
- HPP Support one-click activation and remote management via Hik-Partner Pro. Functions supported:1. Display the port rate.2. Display the port bandwidth utilization rate.3. Display the PoE power usage.4. Display topology information.5. Display the alarm status.6. Restart ports and devices.7. Enable port long-rage mode.8. Remotely upgrade the device.
- System Maintenance Support device management via web.Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.Support management via Hik-Central Pro.Support remote management via Hik-Partner Pro.Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.Supports 802.1ab LLDP for peer device discovery.Support port mirroring for fault locating.
- Certificaciones
- EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
- Seguridad CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
- Química CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
