| CARACTERÍSTICAS DE HARDWARE | |
|---|---|
| Interfaz | 1× 2.5G Ethernet Port |
| Botones | Reset |
| Fuente de Alimentación | 802.3at PoE or 12V/1.5A DC (Power Adapter Is Not Included) |
| Consumo de Potencia | • 18.6 W (For PoE); • 16.0 W (For DC) |
| Dimensiones | 6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm) |
| Antenas | • 2.4 GHz: 2× 4.0 dBi
• 5 GHz: 2× 5.0 dBi
|

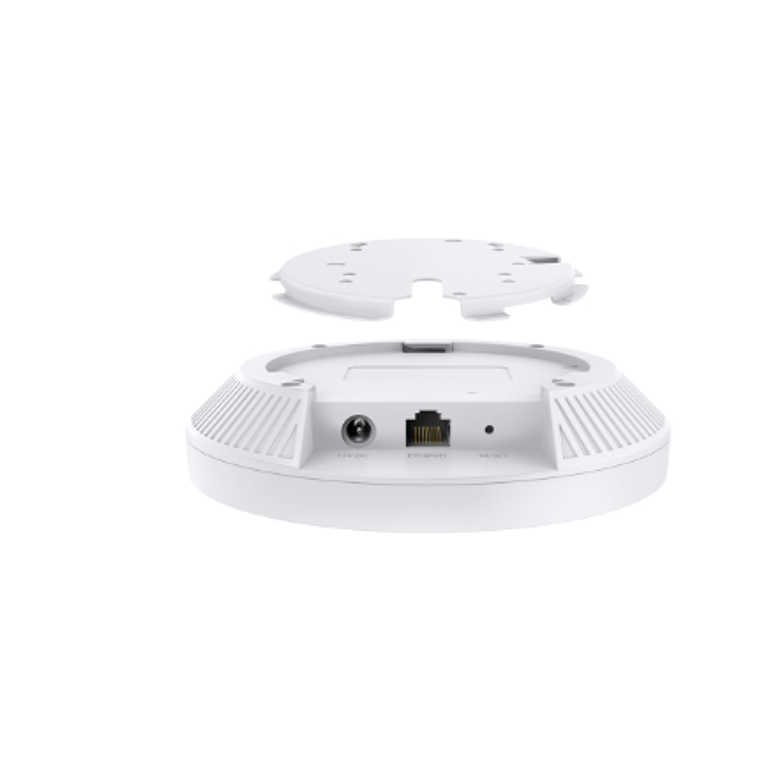

| Montaje | Ceiling / Wall Mounting (Kits Included) |
| CARACTERÍSTICAS INALÁMBRICAS | |
|---|---|
| Coverage | 140㎡*** |
| Clientes concurrentes | 250+** |
| Estándares Inalámbricos | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frecuencia | 2.4 GHz and 5 GHz |
| Tasa de Señal | 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz) |
| Funciones Inalámbricas | • 4K-QAM‡ • Seamless Roaming • MU-MIMO‡ • EHT160‡ • Mesh△ • OFDMA‡ • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDS:16(8 on each band) • Wireless Schedule • Reboot Schedule • QoS(WMM) • Rate Limit • Static IP/Dynamic IP • RADIUS Accounting • MAC Authentication |
| Seguridad Inalámbrica | • Captive Portal Authentication△ • Access Control • Maximum number of MAC Filter: 4,000 • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Potencia de Transmisión | < 20 dBm (2.4 GHz, EIRP)
< 23 dBm (5 GHz, band 1&band 2, EIRP)
< 28 dBm (5 GHz, band 3, EIRP)
|
| GESTIÓN | |
|---|---|
| Omada App | Yes |
| Gestión Centralizada | • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
|
| Acceso a la nube | Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller. |
| Alertas por Correo Electrónico | Yes |
| LED de control ON / OFF | Yes |
| Control de Gestión de Acceso MAC | Yes |
| SNMP | v1, v2c, v3 |
| Acceso al Registro de Sistema Local/ Registro del Sistema Remoto | Yes |
| Gestión basada en Web | Yes |
| Otros | |
|---|---|
| Certificaciones | CE, FCC, RoHS, IC |
| Contenido del Paquete | • EAP723 • Installation Guide • Ceiling/Wall Mounting Kit |
| Factores Ambientales | • Operating Temperature: 0 °C–40 °C (32 °F–104 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing; |
