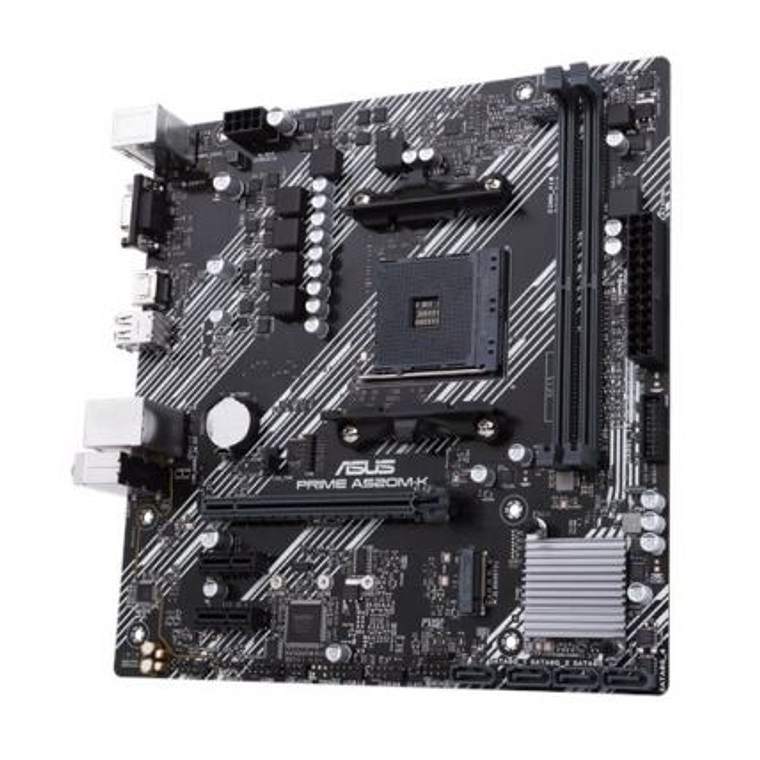

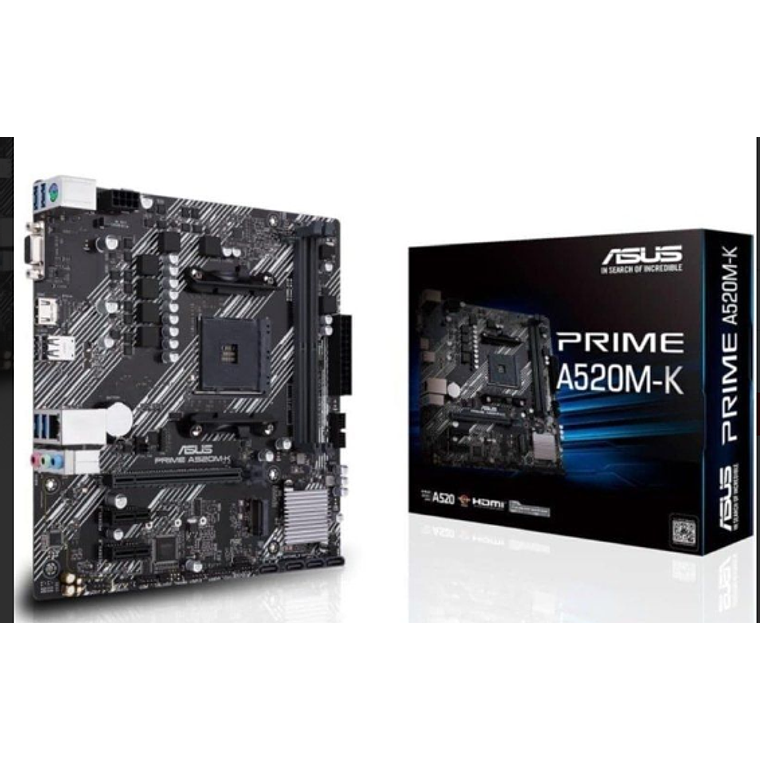

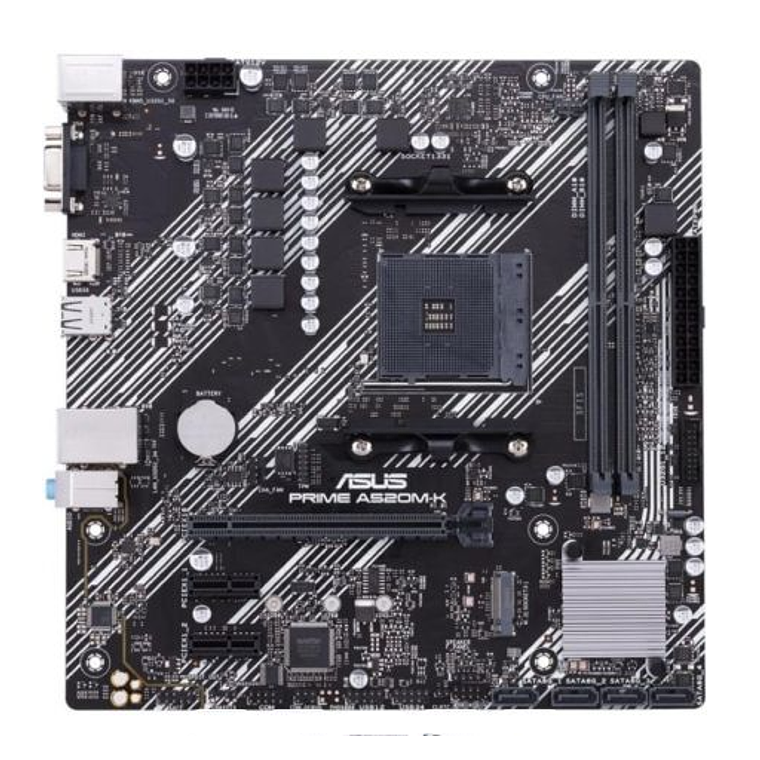

Placa Madre Asus Prime A520M-K Socket AM4/ Micro ATX

Placa Base micro ATX AMD A520 (Ryzen AM4) con soporte M.2, Ethernet de 1 Gb, HDMI / D-Sub, SATA 6 Gbps, USB 3.2 Gen 1 Tipo A

• Socket AMD AM4: Listo para procesadores de escritorio Ryzen™ 5000 Series / 4000 G-Series / 3000 Series.
• Enfriamiento completo: Disipador de Chipset y Fan Xpert.
• Conectividad ultrarrápida: Compatibilidad con M.2, Ethernet de 1 Gb, USB 3.2 Gen 2 tipo A.
• 5X Protection III: Múltiples protecciones de hardware para la protección integral del sistema.

• Model
• PRIME A520M-K
• CPU
• AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors *
• * Refer to www.asus.com for CPU support list.
• Chipset
• AMD A520
• Memoria
• 2 x DIMM, Max. 64GB, DDR4 4866(O.C)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *
• Dual Channel Memory Architecture
• ECC Memory (ECC mode) support varies by CPU.
• * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
• Gráficos
• 1  x D-Sub
• 1  x HDMI 2.1(4K@60HZ)
• Slots de Expansión
• AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
• 1 x PCIe 3.0 x16 (x16 mode)
• AMD A520 Chipset
• 2 x PCIe 3.0 x1
• Almacenamiento
• Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
• AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors :
• 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
• AMD A520 Chipset :
• 4 x SATA 6Gb/s port(s),
• Support Raid 0, 1, 10
• LAN
• Realtek RTL8111H 1Gb Ethernet
• ASUS LANGuard
• Audio
• Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC *
• - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
• Audio Feature :
• - Audio Shielding
• - Dedicated audio PCB layers
• * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
• Puertos USB
• Rear USB Port ( Total 6  )
• 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
• 2 x USB 2.0 port(s)(2 x Type-A)
• Front USB Port ( Total 6  )
• 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
• 4 x USB 2.0 port(s)(4 x Type-A)
• Software Features
• ASUS Exclusive Software
• Armoury Crate
• AI Suite 3
• - Performance and Power Saving Utility
• TurboV EVO
• EPU
• Digi+ VRM
• Fan Xpert
• - EZ update
• ASUS CPU-Z
• AI Charger
• DAEMON Tools
• Norton Anti-virus software (Free Trial for 60 days)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode
• ASUS Special Features
• ASUS 5X PROTECTION III
• - ASUS DIGI+ VRM
• - ASUS LANGuard
• - ASUS Overvoltage Protection
• - ASUS SafeSlot Core
• - ASUS Stainless-Steel Back I/O
• ASUS Q-Design
• - ASUS Q-DIMM
• - ASUS Q-Slot
• ASUS Thermal Solution
• - Aluminum heatsink design
• Puertos I/O Traseros
• 1 x PS/2 keyboard/mouse combo port(s)
• 1 x D-Sub
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 4 x USB 3.2 Gen 1 (blue) Type-A
• 2 x USB 2.0
• 3 x Audio jack(s)
• Internal I/O
• 1 x CPU Fan connector(s)
• 1 x Chassis Fan connector(s)
• 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1 x SPI TPM header
• 4 x SATA 6Gb/s connector(s)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin EATX 12V Power connectors
• 1 x Front panel audio connector(s) (AAFP)
• 1 x Clear CMOS jumper(s)
• 1 x System panel connector
• 1 x COM port header
• 1 x Speaker connector
• Accessorios
• User´s manual
• I/O Shield
• 2 x SATA 6Gb/s cable(s)
• 1 x Supporting DVD
• 1 x M.2 SSD screw package(s)
• BIOS
• 256 Mb Flash ROM, UEFI AMI BIOS
• Capacidad de gestión
• WOL by PME, PXE
• Sistema Operativo
• Windows® 10 64-bit
• Factor de forma
• mATX Form Factor
• 8.9  inch x 8.7  inch ( 22.6  cm x 22.1  cm )
