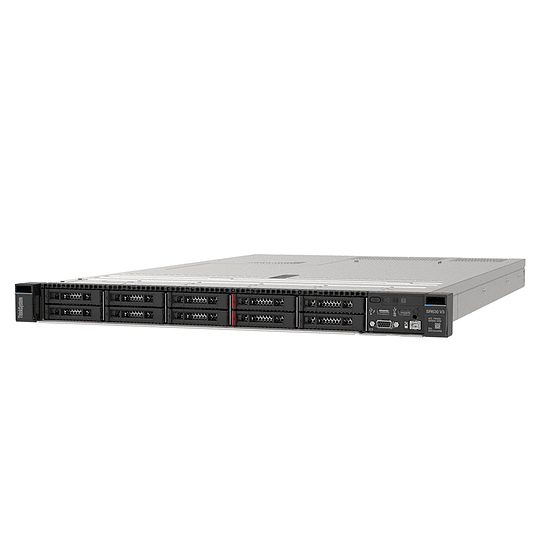

Servidor Servidor Lenovo ThinkSystem SR630 V3 Xeon Silver 4410Y 2.0Ghz 32GB 7D73A02ALA
El Lenovo ThinkSystem SR630 V3 es un servidor en rack de 1U y 2 sockets ideal para pequeñas y grandes empresas que necesitan confiabilidad, administración y seguridad líderes en la industria, así como maximizar el rendimiento y la flexibilidad para el crecimiento futuro. El SR630 V3 está diseñado para manejar una amplia gama de cargas de trabajo, como bases de datos, virtualización y computación en la nube, infraestructura de escritorio virtual (VDI), seguridad de infraestructura, administración de sistemas, aplicaciones empresariales, colaboración/correo electrónico, transmisión de medios, web y HPC.
- Procesador Intel Xeon Silver 4410Y (12 cores, 24 hilos, 2.0 a 3.9 GHz, 30 MB cache)
2° Procesador Opcional
32GB RAM DDR5 RDIMM (32 ranuras, ampliable hasta 8TB)
2 drives SSD Lenovo 480GB M.2 SATA
Controlador SATA/SAS 9350-8i (0, 1, 5, 6, 10, 50, 60)
8 bahías SAS/SATA de 2.5”
4 puertos Ethernet 10/100/1000
SR630 V3 Processor
- 2x 5th Gen or 4th Gen Intel Xeon Scalable Processors
- Up to 64 cores
- TDP ratings up to 350W
- 80x PCIe 5.0 lanes per processor
- Significant increase in cores per processor
- Increased performance
- Consolidation of more apps on same number of servers, reducing costs
- New PCIe 5.0 support means higher performance networking and NVMe storage
Memory
- DDR5 memory operating up to 5600 MHz
- 8 channels per CPU
- 32 DIMMs (16 per processor), 2 DIMMs per channel
- Supports RDIMMs, 3DS RDIMMs and 9x4 RDIMMs
- Up to 8TB of system memory
- No support for Intel Optane Persistent Memory
- New DDR5 memory offers significant performance improvements over DDR4
- Support for lower-cost 9x4 DIMMs
Internal storage
- Front: 4x 3.5” SAS/SATA hot-swap drive bays
- Front: Up to 8x SAS/SATA hot-swap drives bays
- Front: 10x 2.5” SAS/SATA/NVMe (up to 4 AnyBay or 10x NVMe)
- Front: 16x E1.S EDSFF NVMe hot-swap drive bays
- Front: 4x 2.5" SAS/SATA + 3x PCIe slots (LP, FH, OCP)
- Rear: Up to 2x 2.5’” SAS/SATA or NVMe hot-swap drive bays
- Rear: 2x 7mm SATA or NVMe hot-swap drive bays (RAID support via VROC)
- 16x Onboard NVMe ports
- 2x Internal M.2 with optional RAID 1 (RAID support via VROC)
- Flexible storage offerings
- Support for up to 12x 2.5" NVMe drives
- Planned support for E3.S EDSFF drives
- New front PCIe slots configuration
- No support for M.2 with RAID
- No support for 4x 3.5" AnyBay drive bays
- Additional NVMe ports means no need for Retimer adapters, freeing up slots for other adapters
RAID
- 8-port and 16-port RAID adapters with up to 8GB flash
- Support for Lenovo and Broadcom adapters
- Support for PCIe or Internal cabled (CFF) form factor adapters
- Support for NVMe drives connected to 940 RAID adapters (Tri-Mode)
- Storage HBAs available
- PCIe 3.0 and PCIe 4.0 adapter choices with support for Gen 5 adapters when available
- Consistent RAID/HBA support
- Flexible config solution
- PCIe Gen 5 allows for greater storage performance
Networking
- OCP 3.0 slot with PCIe Gen 5 x16 interface (rear) or PCIe Gen4 x16 interface (front)
- Additional PCIe adapters supported
- 1GbE dedicated Management port
- Improved performance with PCIe Gen 5
- Optional front-accessible OCP slot
PCIe
- Up to 2x PCIe Gen 5 slots + 1x PCIe Gen 4 slot (support up to 3x 75W GPUs)
- Supports either 3x slots (all LP) or 2x slots (LP + FH)
- FH slot connects to either CPU 1 (slot 2) or CPU 2 (slot 3)
- Additional OCP 3.0 slot
- Supports a RAID/HBA in CFF form factor (does not occupy a PCIe slot)
- Support for 3x front-accessible slots (2x PCIe + 1x OCP) with 4 drive bays
- PCIe Gen 5 allows for greater I/O performance
- Flexible PCIe offerings
- Front-accessible slots available
Management and security
- Integrated XClarity Controller 2
- Support for full XClarity toolset including XClarity Administrator
- Platform Firmware Resiliency (PFR) hardware Root of Trust (RoT)
- Tamper Switch security solution (intrusion switch)
- New XCC2 offers improved management capabilities
- Same system management tool with previous generation
- Silicon-level security solution
Power
- 750W, 1100W, 1800W AC Platinum/Titanium Hot Plug PSU
- 1100W -48VDC Platinum general support
- 240V HVDC support for PRC customers
- Active-Standby mode
- Multiple PSU offerings to suit the configuration selected
- New ErP Lot 9-compliant offerings
- Support for Telco customers with -48V requirements
