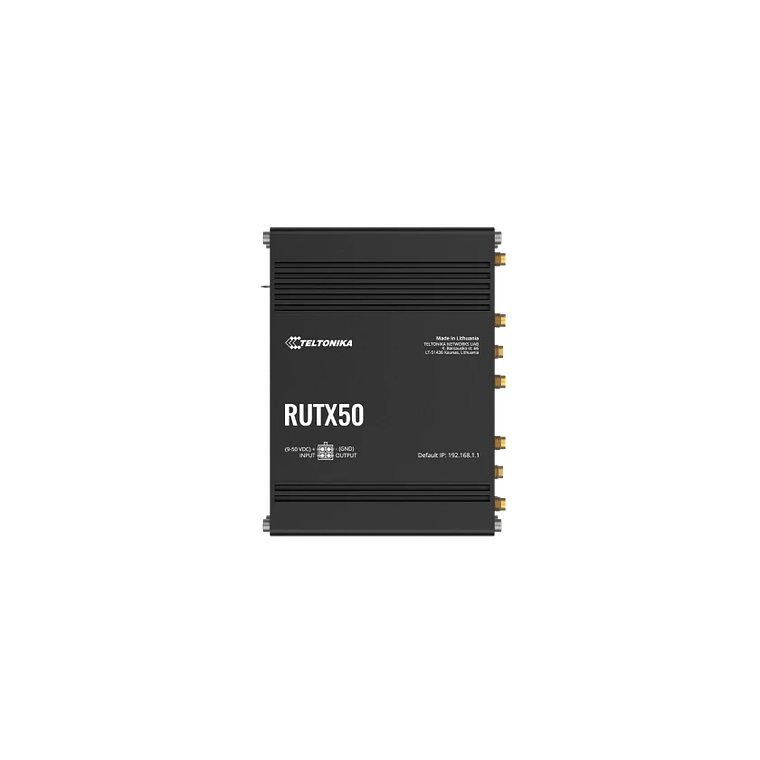

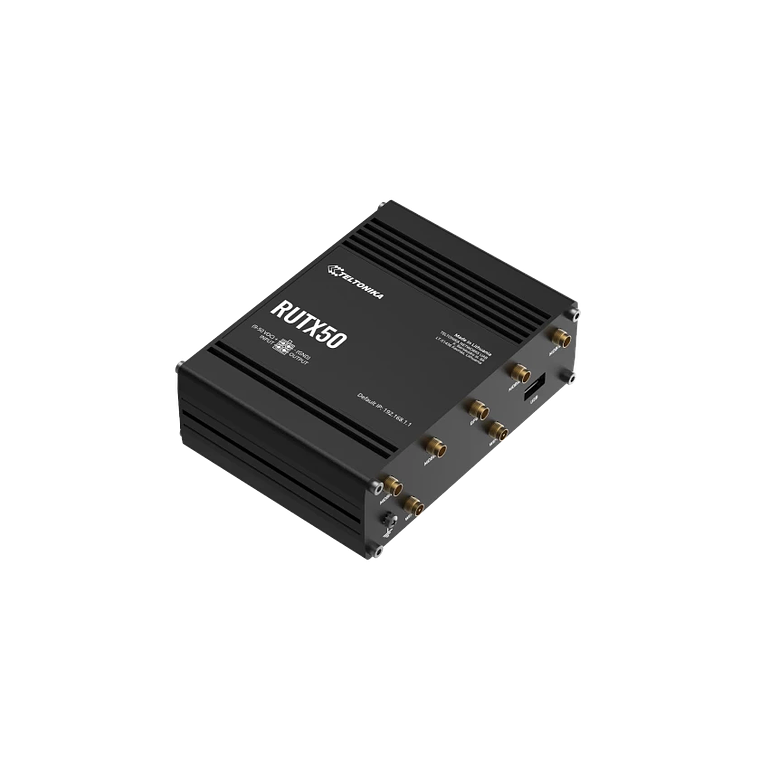

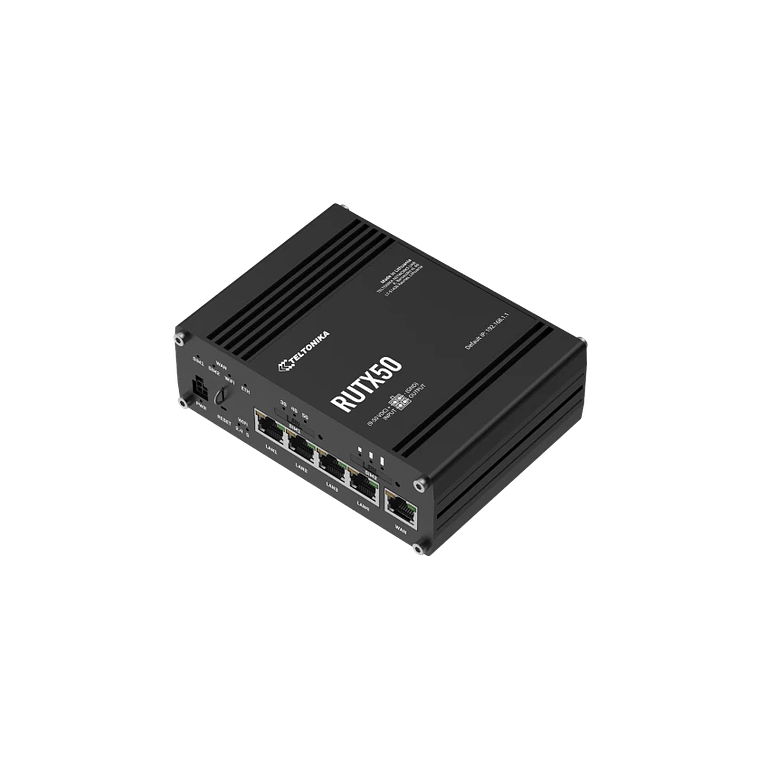

ROUTER INDUSTRIAL 5G
El RUTX50 es un router multirred de doble SIM que ofrece comunicación móvil 5G para aplicaciones de alta velocidad y gran cantidad de datos. Junto con 5 puertos Gigabit Ethernet y Wi-Fi de doble banda, permite una transferencia de datos fiable con auto-failover. La compatibilidad con versiones anteriores y las múltiples interfaces permiten opciones de ampliación y actualización a largo plazo.
5G Velocidades celulares ultrarrápidas de hasta 3,3 Gbps
DOBLE SIM Con conmutación automática por error, WAN de reserva y otros escenarios de conmutación
SA Y SNA Admite ambas arquitecturas para aprovechar la infraestructura 5G
PREPARADO PARA EL FUTURO Compatible con tecnologías de red 4G (LTE CAT 20) y 3G.
5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G LTE Cat 20 up to 2.0 Gbps DL/ 200M Mbps UL; 3G up to 42 DL/ 5.76 UL Mbps
Release 15/16 depending on the hardware version
2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
Supports sending and reading Unstructured Supplementary Service Data messages
Operator black/white list (by country or separate operators)
Possibility to use different PDNs for multiple network access and services
Band lock, Used band status display
When working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until then
SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
Auto APN
Direct connection (bridge) between mobile ISP and device on LAN
Router assigns its mobile WAN IP address to another device on LAN
Framed routing: support an IP network behind 5G UE
Wireless
802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
ESSID stealth mode
Up to 150 simultaneous connections
Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
Whitelist, blacklist
Once scanned, a user will automatically enter your network without needing to input login information.
Ethernet
1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Network
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Port forward, traffic rules, custom rules, TTL target customisation
View all your Firewall statistics, rules, and rule counters
View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
Visual representation of your network, showing which devices are connected to which other devices
Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
Supported >25 service providers, others can be configured manually
DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
Balance Internet traffic over multiple WAN connections
Possibility to mount remote file system via SSH protocol
Initial virtual routing and forwarding (VRF) support
Real-time monitoring, wireless signal charts, traffic usage history
Security
Port-based network access control client
Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
Port and tag-based VLAN separation
Mobile data limit, customizable period, start time, warning limit, phone number
Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Flexible access control of SSH, Web interface, CLI and Telnet
Let's encrypt support
VPN
Multiple clients and a server can run simultaneously, 27 encryption methods
DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,
BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE tunnel, GRE tunnel over IPsec support
Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
SSTP client instance support
ZeroTier VPN client support
WireGuard VPN client and server support
Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.
Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol
OPC UA
Client, Server
TCP
MODBUS
Server, Client
TCP, USB
MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
DATA TO SERVER
HTTP(S), MQTT, Azure MQTT, Kinesis
Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature
MQTT Gateway
Allows sending commands and receiving data from MODBUS Server through MQTT broker
DNP3
Station, Outstation
TCP, USB
DLMS
DLMS - standard protocol for utility meter data exchange
Client
TCP, USB
API
Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
Monitoring & Management
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
Firmware update from server, automatic notification
SSH (v1, v2)
SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT Broker, MQTT publisher
SNMP (v1, v2, v3), SNMP Trap, Brute force protection
Management API over HTTP/HTTPS
Teltonika Remote Management System (RMS)
IoT Platforms
Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
System Characteristics
Quad-core ARM Cortex A7, 717 MHz
256 MB (100 MB available for userspace)
256 MB (80 MB available for userspace)
Firmware / Configuration
Update FW from file, check FW on server, configuration profiles, configuration backup
Update FW
Update FW/configuration for multiple devices at once
Update FW without losing current configuration
A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration
FIRMWARE CUSTOMISATION
RutOS (OpenWrt based Linux OS)
Busybox shell, Lua, C, C++, and Python, Java in Package manager
SDK package with build environment provided
You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
The Package Manager is a service used to install additional software on the device
Location Tracking
GPS, GLONASS, BeiDou, Galileo and QZSS
GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA 0183
NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
Supported server software TAVL, RMS
Configurable multiple geofence zones
USB
USB 2.0
Samba share, USB-to-serial
Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4
Input / Output
1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
1 x Digital Output, Open collector output, max output 30 V, 300 mA
Email, RMS, SMS
Allows to set certain I/O conditions to initiate event
Power
4-pin industrial DC power socket
9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max
Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC
Idle: < 4W, Max: 18W

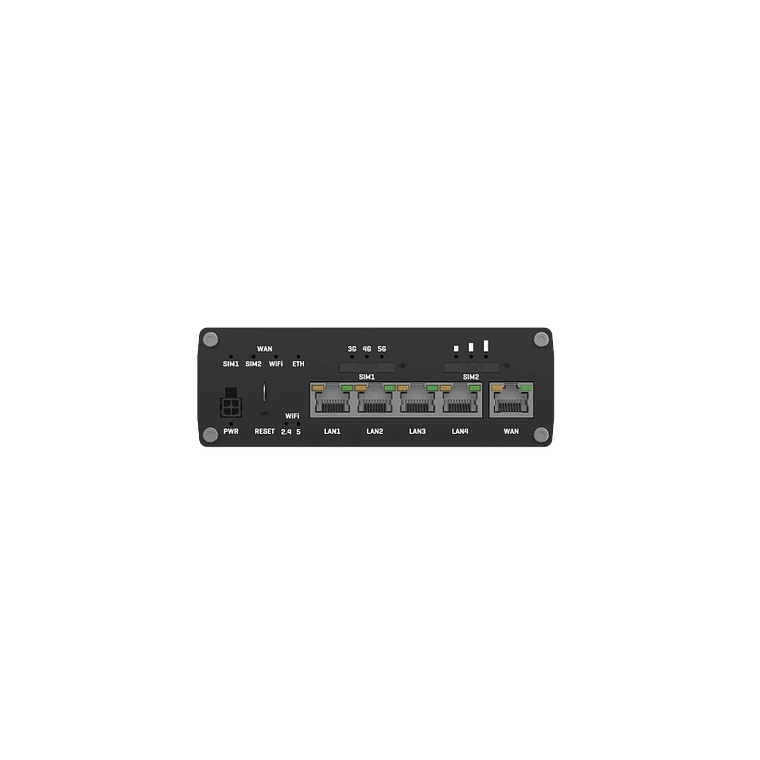

Physical Interfaces
5 x RJ45 ports, 10/100/1000 Mbps
1 x Digital Input, 1 x Digital Output on 4-pin power connector
3 x connection status LEDs, 3 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1 x Power LED, 2 x 2.4G and 5G Wi-Fi LEDs
2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V
1 x 4-pin power connector

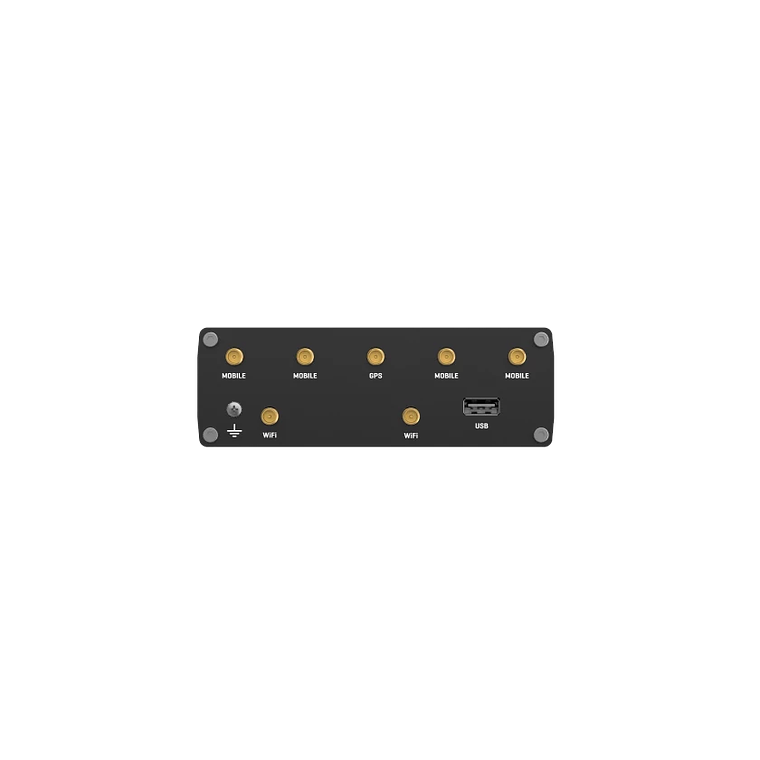

4 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNNS
1 x USB A port for external devices
Reboot/User default reset/Factory reset button
1 x Grounding screw
Physical Specification
Aluminium housing
132 x 44.2 x 95.1 mm
533 g
DIN rail, wall mount, flat surface (all require additional kit)
Operating Environment
-40 °C to 75 °C
10% to 90% non-condensing
IP30
Regulatory & Type Approvals
CE, UKCA, RCM, IMDA, CB, E-mark, SIRIM, ETSI EN 303 645, SDPPI (POSTEL)
NOS (Portugal)
EMC Emissions & Immunity
EN 55032:2015 + A11:2021 + A1:2020
EN 55035:2017 + A11:2020
EN IEC 61000-3-2:2019 + A1:2021
EN 61000-3-3:2013 + A1:2019 + A2:2021
EN 301 489-1 V2.2.3
EN 301 489-3 V2.1.1
EN 301 489-17 V3.2.4
EN 301 489-19 V2.2.1
EN 301 489-52 V1.2.1
EN 61000-4-2:2009
EN IEC 61000-4-3:2020
EN 61000-4-4:2012
EN 61000-4-5:2014 + A1:2017
EN 61000-4-6:2014
EN IEC 61000-4-11:2020
RF
EN 300 328 V2.2.2
EN 300 440 V2.2.1
EN 301 893 V2.1.1
EN 301 908-1 V13.1.1
EN 301 908-2 V13.1.1
EN 301 908-13 V13.1.1
EN 301 908-25 V15.1.1_15.0.6
EN 303 413 V1.2.1
Safety
CE: EN IEC 62368-1:2020 + A11:2020, EN 62311:2020
RCM: AS/NZS 62368.1:2022
CB: IEC 62368-1:2018
